From an Old Swingset to a Greenhouse

Swingset greenhouse
Swingset greenhouse

Is it a tiny greenhouse?  Or a walk-in coldframe?

I’ve always wanted a greenhouse. I have several coldframes that I’ve been using to extend the gardening season at both ends, so that we have fresh salad from the garden at both Christmas and Easter! But I want more! I’d also like to do a better job growing plants that enjoy more heat than we get here near the sea – tomatoes, peppers and basil, for example.

The front of our one-acre property, where my main garden is, is exposed to wicked northerly winds during the winter. I worry about how a greenhouse would stand up to the storms. But the back of the house is more sheltered, and faces south. I dream of building a sunroom – let’s call it an “orangerie” to be exotic – onto the house, but that isn’t going to happen anytime soon.

However, I had this rusty, outgrown swingset, a pile of scavenged lumber, and some ideas:

  • Perhaps a solid back wall on the north side would better resist the wind and the snow.
  • Then I could put in a proper door that would make the interior easy to access during the winter.
  • Start the door a foot off the ground and it would be easier to shovel it out when the snow is thick and hard. No matter that you have to step over it to get in; it would be like stepping into the cabin on a sailboat.
  • Make the door big enough for heat to escape during the summer, since the structure isn’t big enough to cross-ventilate.
  • Add an opening window in the door for those in-between days when you need just a bit of ventilation.
  • Use up that pile of old wood and make room for new things to happen.
Swingset with tomatoes and cucumbers
Swingset in summer with tomatoes and cucumbers

My six-foot-tall son – as tall as the swingset now – helped me move the frame to the garden last spring and roughly level it. We nestled it next to the asparagus bed and let tomatoes climb ropes up to the swing hooks.

As plants died back in the autumn, I redefined the garden paths to go around the future greenhouse, and set the bootstrap-engineering part of my brain to work figuring out how to build out the structure.

The first thing was to build a box around the space using old 2x4s, some of which were nailed together into thicker pieces. If I’d had bigger dimensional lumber I would have used it.

The wall after placing it on the swing frame.
The wall after placing it on the swing frame.

Meanwhile, I set to work building the wall on a flat space in the driveway.  I cut the bottom of the 2×4 studs at the required angle, and set the side studs to slope inward at the slight angle required. Then I framed in the doorway. An old piece of treated plywood determined the width of the door and became a hinged flap at the top. Because I had a lot of strapping, it became the cladding – after we pulled the old nails out.

The picture at right shows the wall after we had carried it to the swing frame and placed it in position. It was a heavy, two-person job.

I had cut the bottom boards but left them off until after I had nailed the sills to the bed frame, so that I could swing the hammer effectively.

My carpentry skills are rough, but I’ve built on what I learned from my grandfather and father by helping friends in various situations. It felt like I was using everything I know in this project, and had to make a lot up as I went along. Plenty of opportunity for problem solving!

greenhouse wall
After placing the wall and adding a post under the door.

For example, after placing the wall, I realized that it would be tempting to sit on the door sill, so I added a vertical post to support it (left), which would be standard framing technique anyway. In fact, there should be another short post on each side, next to the studs – if you were building to code, which I wasn’t.

wall borded in
The wall boarded in.

Then I boarded in the bottom of the wall using the pieces that I had pre-cut.

Any stained or treated wood is high up in the structure, away from the soil.

Because the season was getting late, and I had seedlings already growing too thickly in my coldframes, I had prepared the bed and transplanted a variety of seedlings into it before the wall was ready. It was easier to do while the space was open. I had no need to step on the bed while assembling the wall.

I built the door on the flat driveway and hung it after the wall was in place, using heavy hinges.

Once the door was hung, we added the plastic, which had come second-hand from a commercial greenhouse via a friend. We stapled it in place, one plane at a time, and applied my best gift-wrapping technique to make it flat. I nailed strapping in place to hold the edges all around. It needs to be well attached to withstand the storms.

I hadn’t intended to cover the boards with plastic, but it turned out that it was possible to do so. It will make the greenhouse warmer, though it will breathe less.

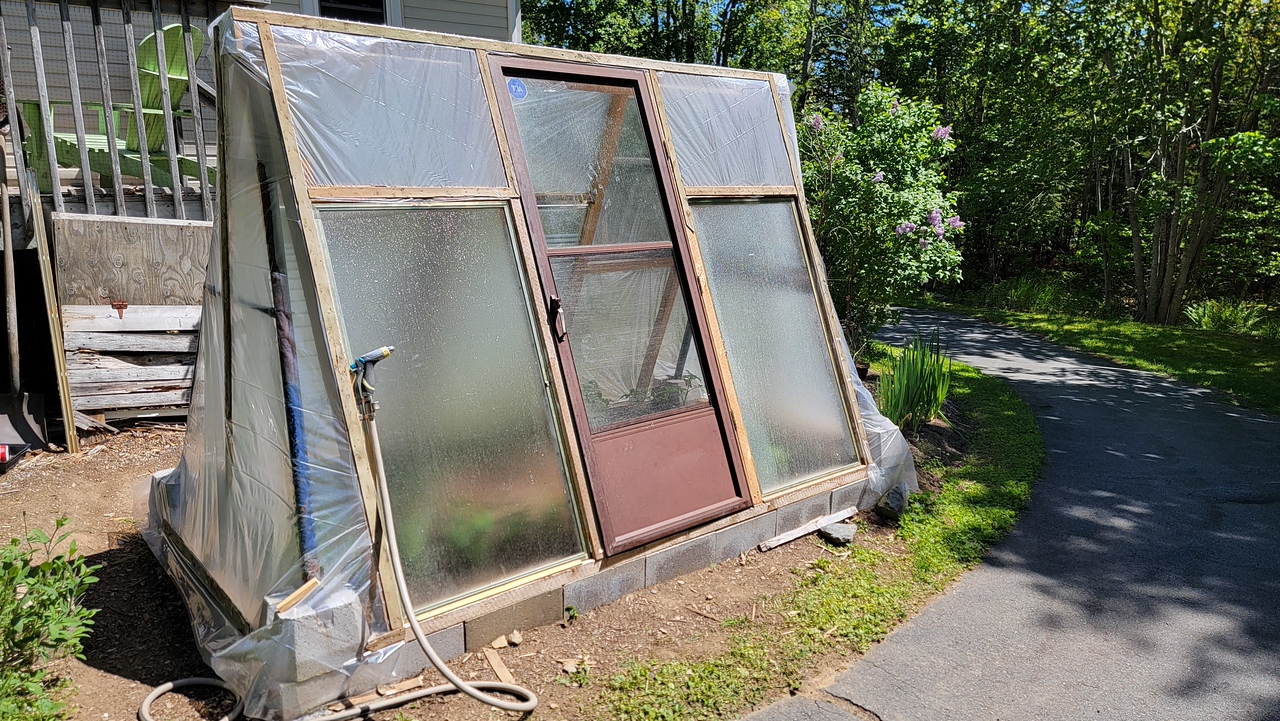

The almost finished greenhouse
The almost finished greenhouse

All I had to buy for this project was the hinges. I used up most of the scrap wood I had on hand, and I had enough nails and screws from former projects – some mine, some my father’s, and some my grandfather’s! I’m lucky in a way to have inherited everybody’s stuff, and I’m delighted to put them to good use. My grandfather, who built the first coldframes I ever saw, must be smiling at this little structure.

One unforeseen benefit of the design is that the weight of the door on the inward slope keeps it in place whether it’s closed or open. I don’t think I’ll need to use a latch or hook, even in the howling wind.

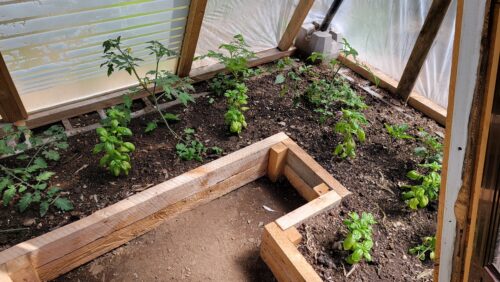

Inside the greenhouse
A short person could stand up inside. Not me.

It already feels like a greenhouse inside – warm, sheltered, moist, a place to grow. I’ll be looking for excuses to hang out here during the winter. A little kitchen stool is all the furniture it can handle, but even that will allow one to sit rather than squat. Hmm… maybe a hammock which I can tuck up and away when not in use…. the swing hooks are still there, after all.

I’ll watch and listen carefully for flapping and wear and tear on the plastic. Maybe I’ll cut clips out of PVC tubing to attach the plastic to the metal on the south side.

The plastic will need to be replaced every few years; something to plan for.

My seedlings look happy.

Now I’m actually looking forward to winter!

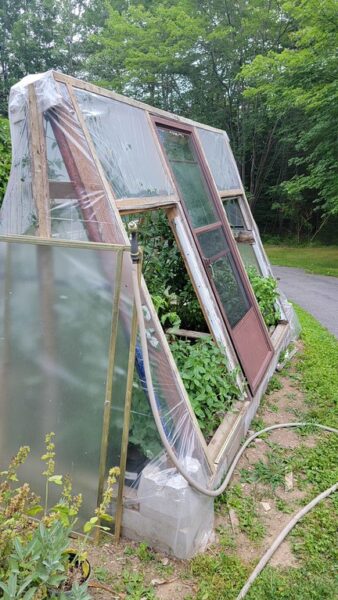

UPDATE 2018: The size of the plastic on the south side is too big, and has stretched as it flaps on windy days, especially if the door is open. It happens to be near our bedroom window and the noise of the flapping is annoying. When I replace the plastic, I’ll build a frame similar to that on the north side, but not boarded in, so it flaps less and gives me a little more room to move around inside.

You could also design your frame to hold old windows. However, I’ve used old windows on coldframes and they have two disadvantages:

  1. If they break, it’s a pain to clean up the broken glass in the soil;
  2. Windows old enough to have lead paint are also old enough to have that paint flake and get into your soil. Not healthy.

I’ve had better experience with tempered glass, from shower doors, for example, which I’ve used for several years on coldframes without mishap. Aluminum screen doors and windows are also good. I’ll be sticking with those in the future.

Oh – and I LOVE going into my little greenhouse and at colder times of the year to pick a fresh salad for guests, or for Christmas dinner!
